Roland XT-640

Developed specifically for dye sublimation transfer printing, the Texart XT-640 delivers outstanding productivity, exceptional print quality and renowned reliability, thanks to its exclusive printing technology. Maximise the strength and style of your output across a wide range of applications including sportswear, fashion, soft signage, interior decoration, promotional merchandise and much more.  The XT-640 is available in two Texart ink configurations: with 4 colours (dual CMYK) or 8 colours (CMYKLcLm + Orange + Violet).

Discover the exciting commercial benefits of digital dye sublimation transfer printing with the Texart XT-640. With fast set up and low fixed costs, it’s quick and easy to do one-offs, sampling and limited editions. Adapt your output to customers’ requirements with easy, on demand production. Digital sublimation offers efficiency and flexibility to your business - print different colour variations or completely different designs within the same print run to achieve mass customisation, or batch up different jobs during one long run to get the most out of your machine.

The XT-640’s advanced print control technology, in combination with Texart ink, produces stunning sharp image quality and brilliant vivid colour. For maximum production, the 4 colour ink configuration delivers fine detail and exceptional contrast at impressive print speeds. To optimise an already wide colour gamut, the 8 colour configuration includes Orange and Violet ink to give your prints maximum impact.

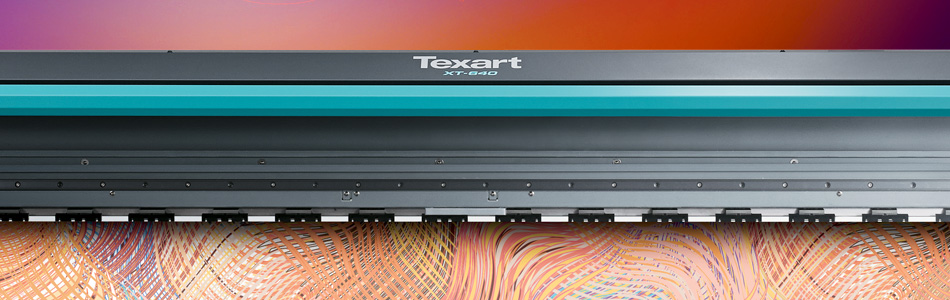

With its rugged construction and dual print heads in a staggered formation, the Texart XT-640 is built to meet demanding production requirements, delivering print speeds up to 63m2/h. The XT-640 offers stability, stunning print quality and superb high-speed performance. To capture every gradation and detail, each head fires precise droplets in up to seven different sizes to accommodate media characteristics and desired print quality.


Summary:

  • 64” wide sublimation printer
  • Print speed of up to 63m2/h
  • Uses Roland’s Texart ink including Orange and Violet, to deliver bold and vivid colours and intense rich Blacks
  • Available in 4-colour (dual CMYK) or 8 colour (CMYKLcLmOrVi) ink configurations

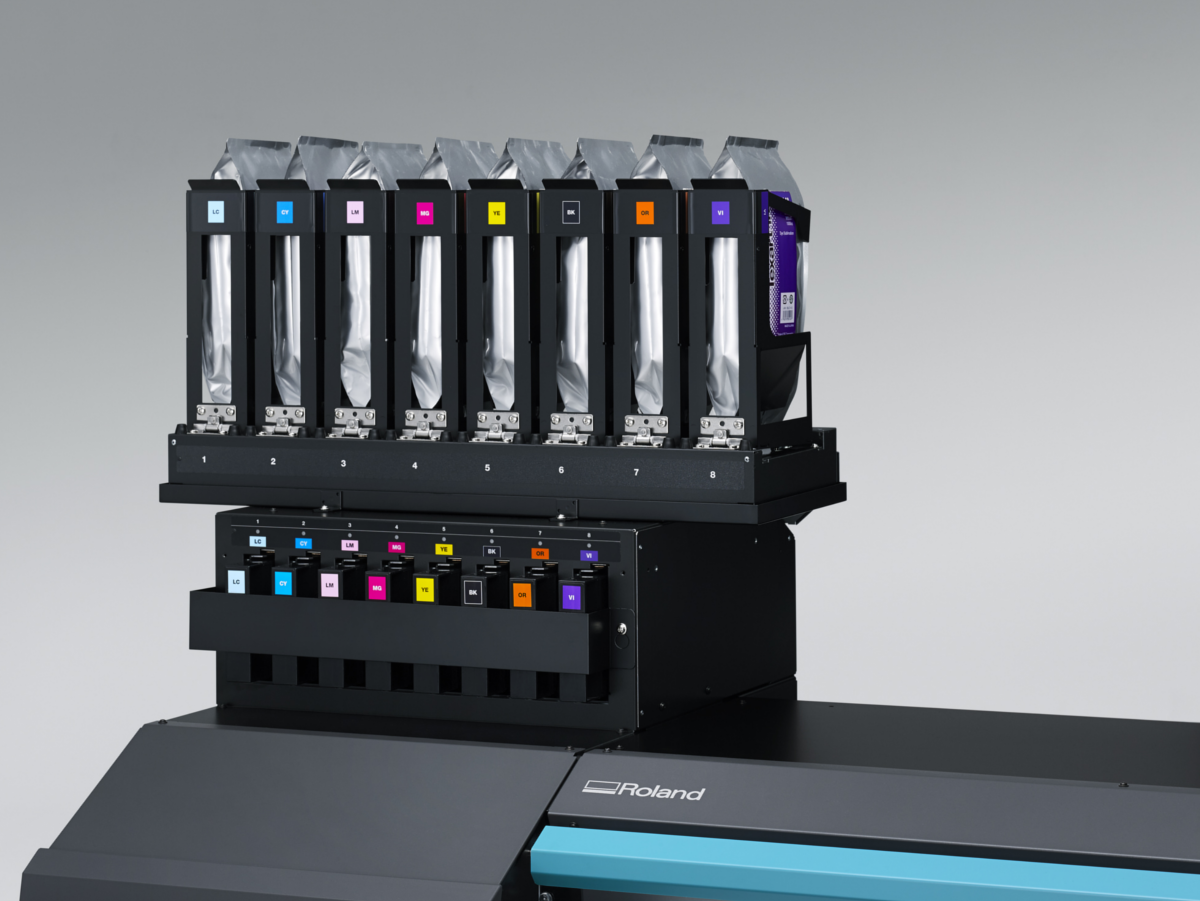

  • Roland pouch Ink System ensures stable printing with 1 litre ‘clean hands’ airtight ink pouches
  • Roland’s proprietary Ink Switching System enables continuous unattended printing in 4 colour configuration

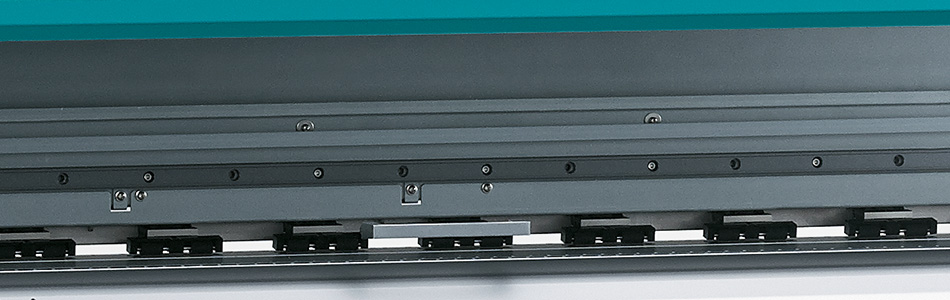

  • Feed Adjuster provides even tensioning and prevents media skewing
  • ErgoSoft Roland Edition, with a full range of textile-specific features
  • Automated take-up system for unattended printing included in the price

Tecnologia de impressão   Jato de tinta piezoelétrico
Material Largura 259 a 1,625 mm
  Espessura Máx. 1.0 mm com liner
  Diâm. exterior do rolo Máximo 210 mm
  Peso do rolo Máx. 40 kg
  Diâm. do núcleo*1 *1 76.2 mm o 50.8 mm
Largura de impressão/corte*2   Máx. 1,615 mm
Cartuchos de tinta Tipos Roland Texart ink / bolsas 1L
  Cores 4 cores (ciano,magenta,amarelo e preto)
8 cores (ciano, magenta, amarelo, preto, light magenta, light preto, laranja e violeta)
Resolução de impressão (pontos por polegada)   Máx. 1,440 ppp
Precisão da distância*3   Erro inferior a ±0,3% da distância percorrida, ou ±0,3 mm, o que for maior
Connectividade   Ethernet (10BASE-T/100BASE-TX, mudança automática)
Função de poupança de energia   Modo de suspensão automática
Requisitos de alimentação   AC 100 a 240 V ±10%, 1,5 A, 50/60 Hz
Consumo de energia

Durante o func.: Aprox. 750 W
Em modo de susp: Aprox. 70 W

Nível de ruído acústico

Durante o func:62 dB (A)
Em modo de susp:49 dB (A)

Dimensões (com suporte)   2,835(L) x 830 (P) x 1,650 mm (A) / 214 kg
Ambiente Ligado

Temp.: 18 °C a 25 °C
Humidade: 35 a 65% HR (sem condensação)

  Desligado

Temperatura: 15 °C a 30 °C
Humidade: 20 a 80% HR (sem condensação)

Elementos incluídos   Suporte exclusivo, cabo de alimentação, braçadeiras do material,suporte de material, lâmina de substituição para a lâmina de separação, Manual do Utilizador, etc.
